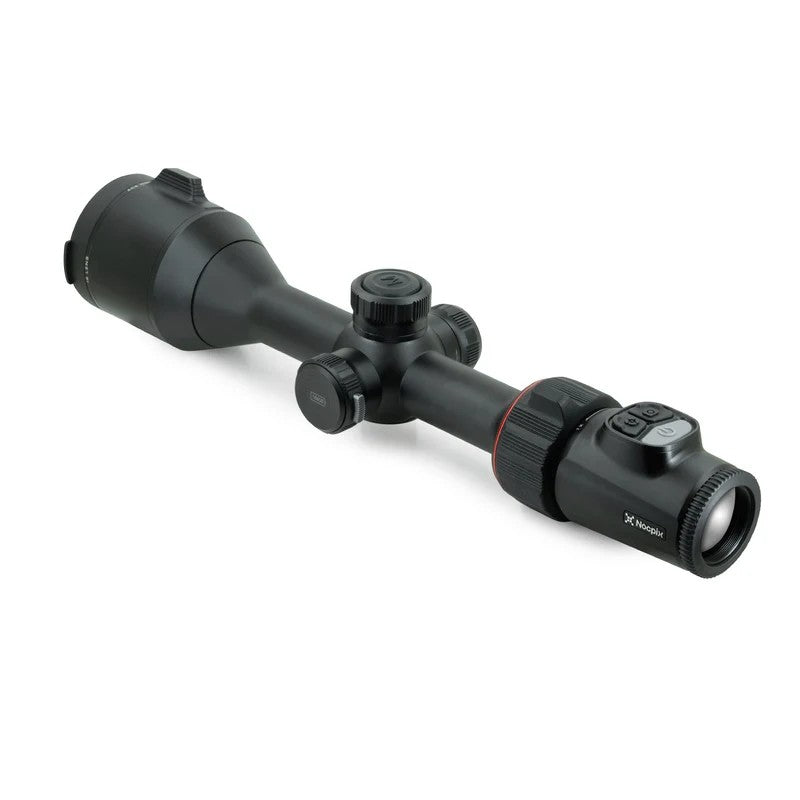

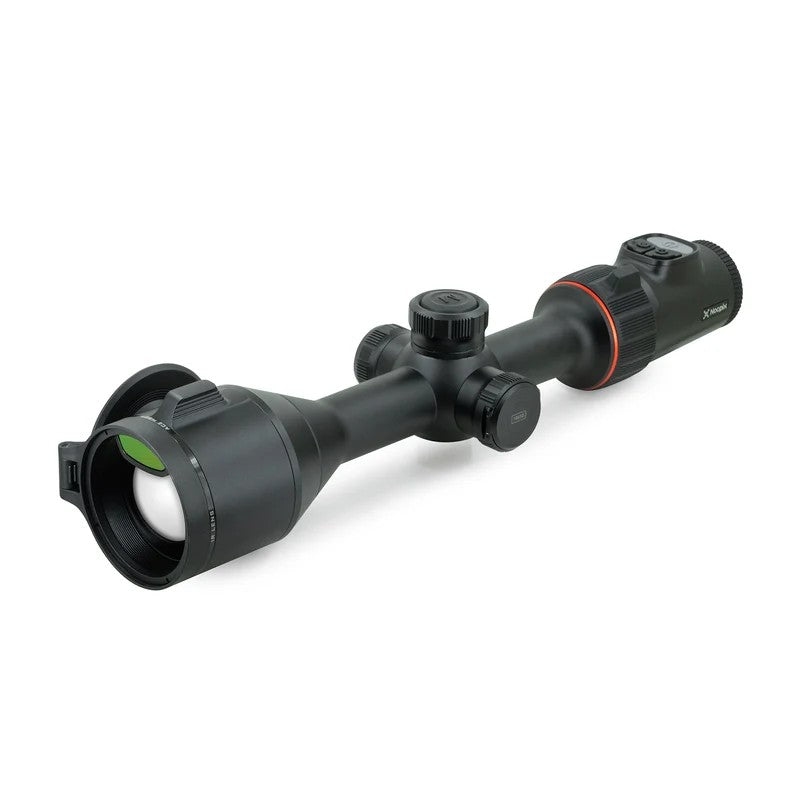

The Nocpix ACE H50R Thermal Scope is a premium long-range thermal optic combining a high-resolution 640×512 thermal sensor, powerful 50 mm F1.0 germanium objective lens, integrated 1,200 m laser rangefinder (LRF) and advanced ballistic calculation in one rugged rifle scope.

Designed for Australian hunters, professional pest controllers and shooters who demand excellent thermal image detail at extended distances, the ACE H50R uses a 12 μm thermal sensor to reveal fine temperature differences in complete darkness and challenging environmental conditions.

Its large 50 mm objective delivers a detection range of up to 2,600 metres, while 2.9× base magnification and digital magnification up to 11.6× provide the flexibility required for both observation and longer-range applications.

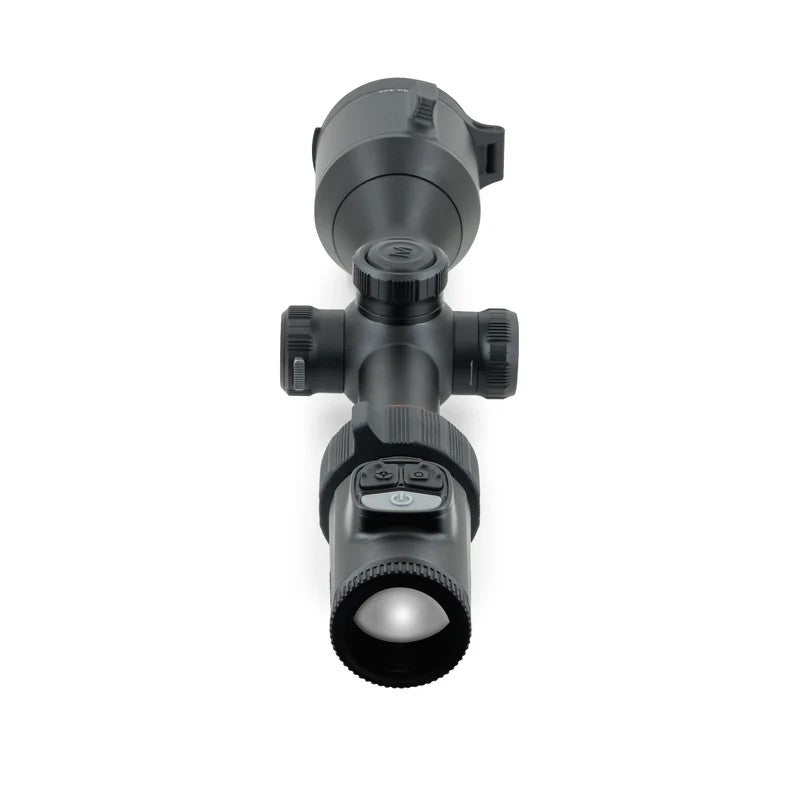

A major advantage of the ACE H50R is its integrated laser rangefinder and ballistic calculator. The LRF measures distances out to 1,200 metres, while ballistic calculation provides additional distance-based shooting information, creating a highly capable all-in-one thermal aiming system.

The high-resolution 1024×768 OLED display delivers detailed, high-contrast thermal imagery, while multiple thermal colour palettes and reticle options allow the display to be customised for different environments and user preferences.

Built around a rugged IP67-rated magnesium alloy housing, the ACE H50R is engineered for demanding Australian field conditions and is recoil rated up to .375 H&H.

Built-in photo and video recording, smartphone connectivity, USB-C power capability and replaceable batteries complete a premium thermal platform designed for serious field use.

Available from Outdoor Man Australia online with Australia-wide shipping, or visit our Townsville showroom.

Key Features

• High-resolution 640 × 512 thermal sensor
• 12 μm pixel pitch for detailed thermal imaging
• Powerful 50 mm F1.0 germanium objective lens
• Detection range up to 2,600 m
• Integrated laser rangefinder up to 1,200 m
• Built-in ballistic calculation
• 2.9× base magnification
• Digital magnification up to 11.6×
• High-resolution 1024 × 768 OLED display
• Multiple thermal colour palettes
• Multiple reticle styles and colours
• Built-in photo and video recording
• Smartphone app connectivity and streaming

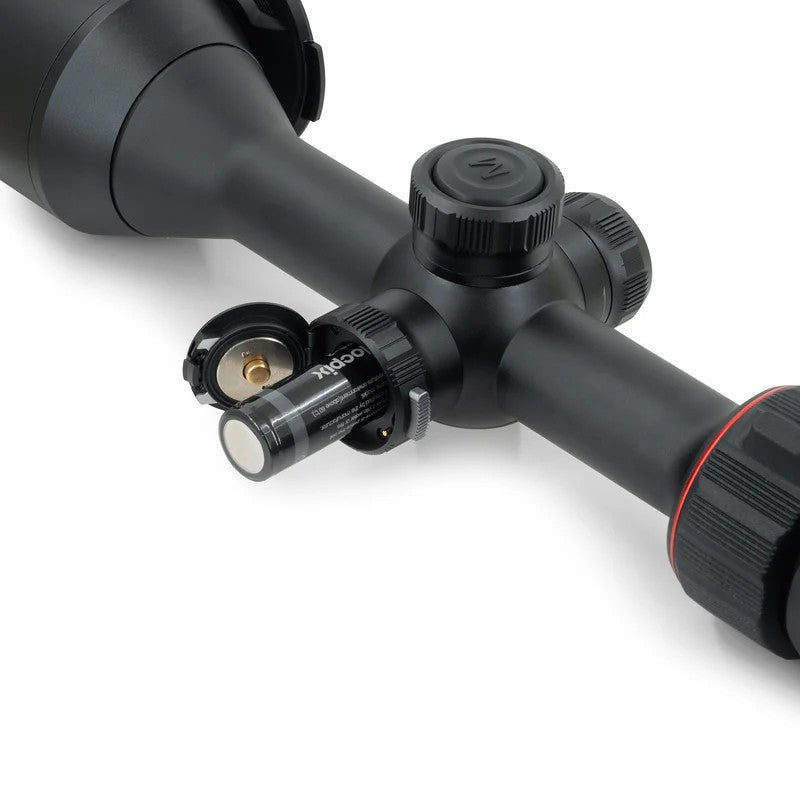

• Replaceable rechargeable battery system
• USB-C external power support
• Rugged magnesium alloy housing
• IP67 waterproof and dustproof rating
• Recoil rated up to .375 H&H

Does the Nocpix ACE H50R have a ballistic calculator?

Yes. The Nocpix ACE H50R combines an integrated laser rangefinder with ballistic calculation, providing distance-based ballistic information to assist the shooter when operating at varying ranges.

How far can the Nocpix ACE H50R detect?

The ACE H50R has a stated thermal detection range of up to 2,600 metres, supported by its 640×512 thermal sensor and large 50 mm F1.0 germanium objective lens.

How far does the rangefinder work on the Nocpix ACE H50R?

The integrated laser rangefinder can measure distances out to 1,200 metres, with stated accuracy of ±1 metre.
