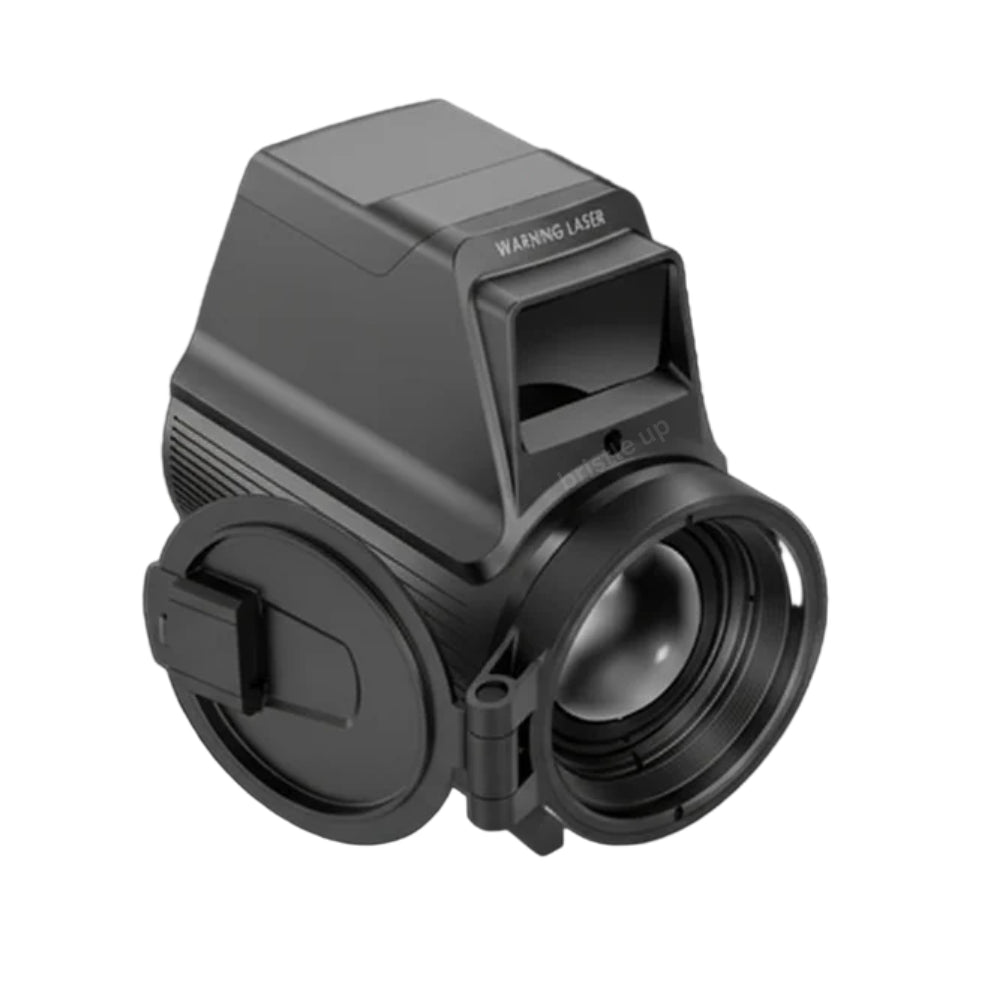

Nocpix NOVA H35R Vehicle-Mounted Thermal Camera with LRF

The Nocpix NOVA H35R is a purpose-built vehicle-mounted thermal imaging camera designed for the demanding conditions of Australian hunting and outdoor observation.

Featuring a high-performance 640 × 512 thermal sensor, 12μm pixel pitch, NETD ≤15mK thermal sensitivity, 35mm fixed-focus lens and integrated 1200m laser rangefinder, the NOVA delivers detailed thermal imaging from a vehicle-mounted platform.

Developed with Australian hunting conditions in mind, the NOVA combines shutter-free thermal imaging, electronic image stabilisation and 5GHz Wi-Fi connectivity to provide a smooth, practical thermal viewing experience.

High-Resolution 640 × 512 Thermal Imaging

At the heart of the NOVA H35R is a 640 × 512 thermal sensor with 12μm pixel pitch, delivering detailed thermal imagery for identifying heat signatures in challenging environments.

With an impressive NETD rating of ≤15mK, the sensor is designed to distinguish subtle temperature differences, helping reveal thermal detail in vegetation, changing weather and low-contrast conditions.

This high thermal sensitivity makes the NOVA particularly useful for night-time wildlife observation and hunting applications where visible light is limited.

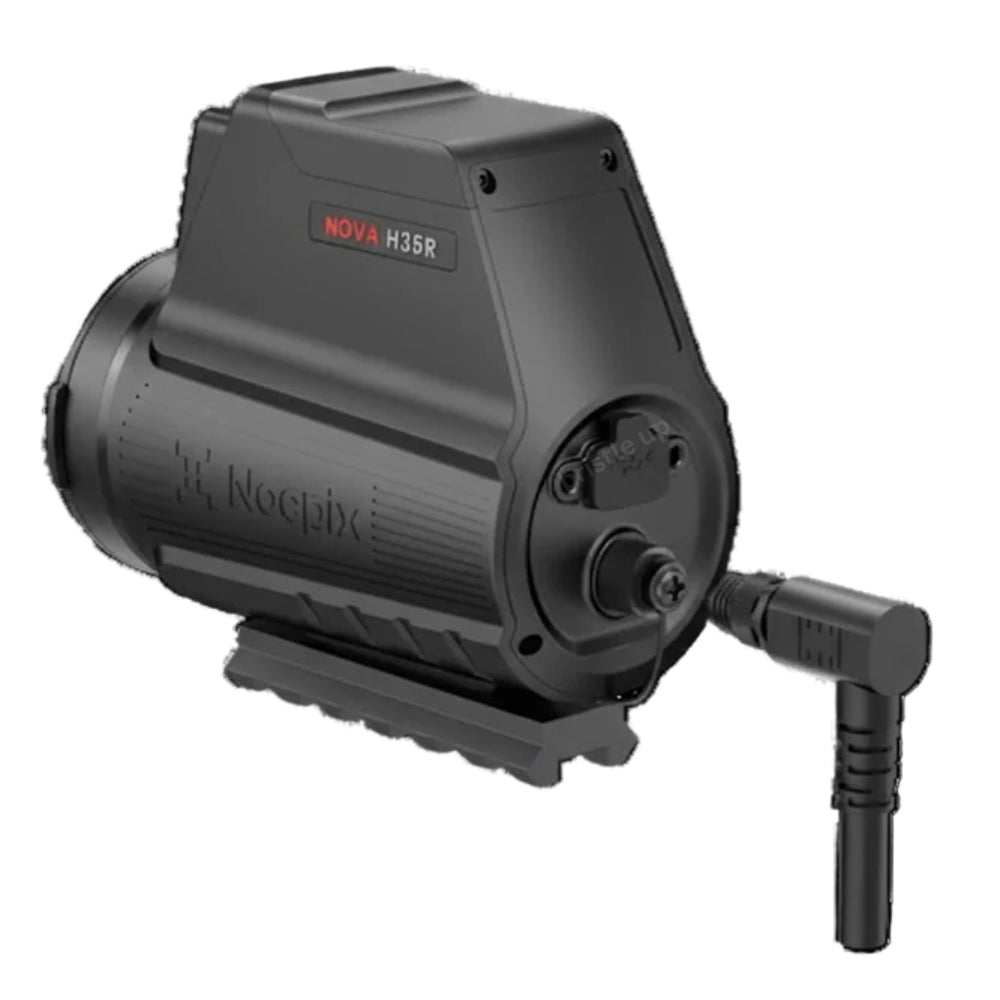

35mm Fixed-Focus Thermal Lens

The NOVA features a 35mm fixed-focus lens designed to provide practical thermal viewing across typical vehicle-based observation distances.

Its fixed-focus system removes the need for constant manual focus adjustments, making operation more convenient when observing changing terrain.

The fixed-focus design is particularly beneficial for vehicle-mounted use, where vibration and movement can make repeated manual adjustments inconvenient.

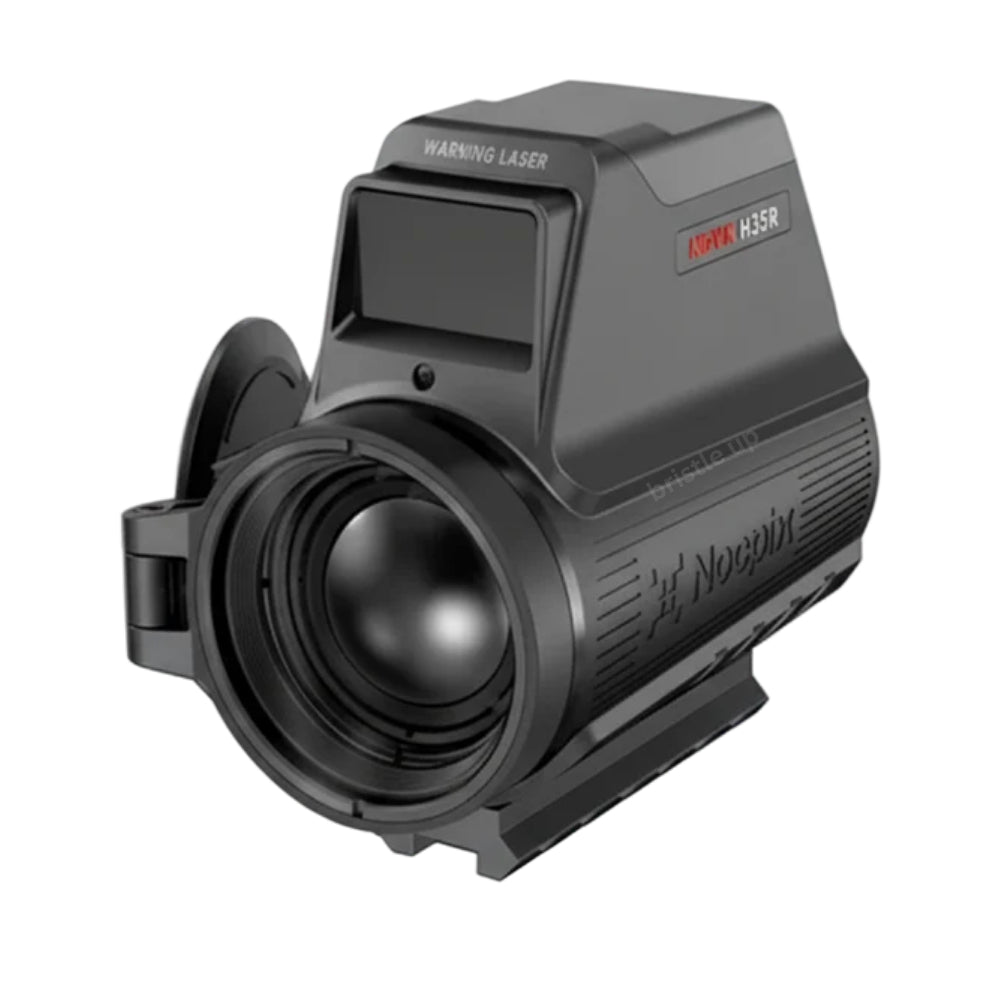

Integrated 1200m Laser Rangefinder

The built-in 1200m Class 1 laser rangefinder (LRF) provides distance measurement capability without requiring a separate handheld rangefinding device.

The NOVA also incorporates a Class 2 laser pointer to assist with locating and indicating points of interest.

Together, these features provide additional situational awareness when observing terrain and identifying objects at a distance.

Shutter-Free Thermal Imaging

The NOVA incorporates shutter-free thermal imaging technology, designed to maintain a continuous viewing experience without the periodic image interruptions associated with traditional shutter-based thermal systems.

This is especially useful when scanning changing terrain or tracking movement through the thermal display.

Electronic Image Stabilisation

Vehicle movement and vibration can make thermal observation difficult.

The NOVA uses Electronic Image Stabilisation (EIS) to help compensate for vibration and movement, delivering a steadier thermal image when the vehicle is moving.

This technology supports more comfortable observation and improved image stability across uneven terrain.

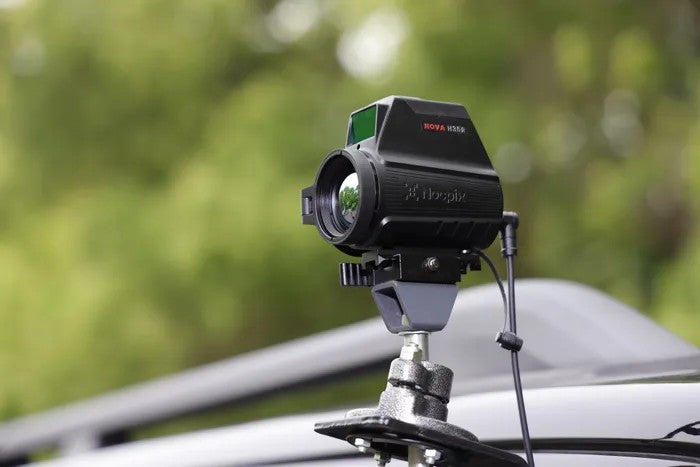

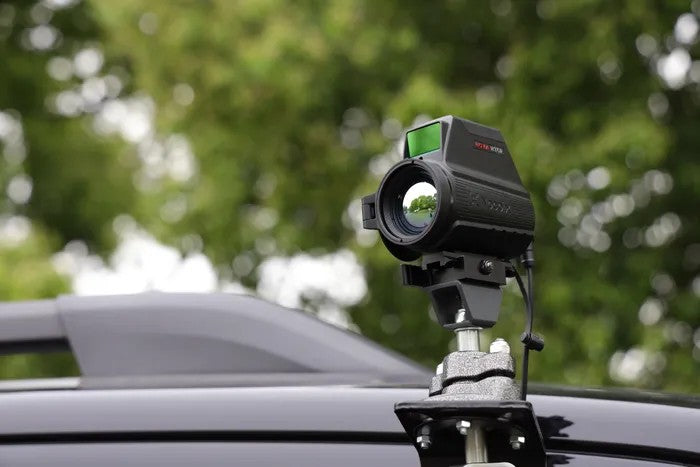

Built for Australian Vehicle-Mounted Conditions

Designed for demanding outdoor environments, the NOVA features a durable aluminium alloy housing, vibration-resistant construction and robust connectors suited to vehicle-mounted applications.

Its construction is intended to withstand repeated vibration, outdoor exposure and the practical demands of vehicle-based hunting equipment.

The NOVA is particularly suited to compatible remote spotlight mounting arrangements where a dedicated thermal camera is required.

Fast 5GHz Wi-Fi Connectivity

The NOVA features 5GHz Wi-Fi connectivity for responsive wireless communication with its compatible viewing and control system.

Combined with shutter-free imaging, this helps provide a smooth, continuous thermal viewing experience with reduced transmission delay.

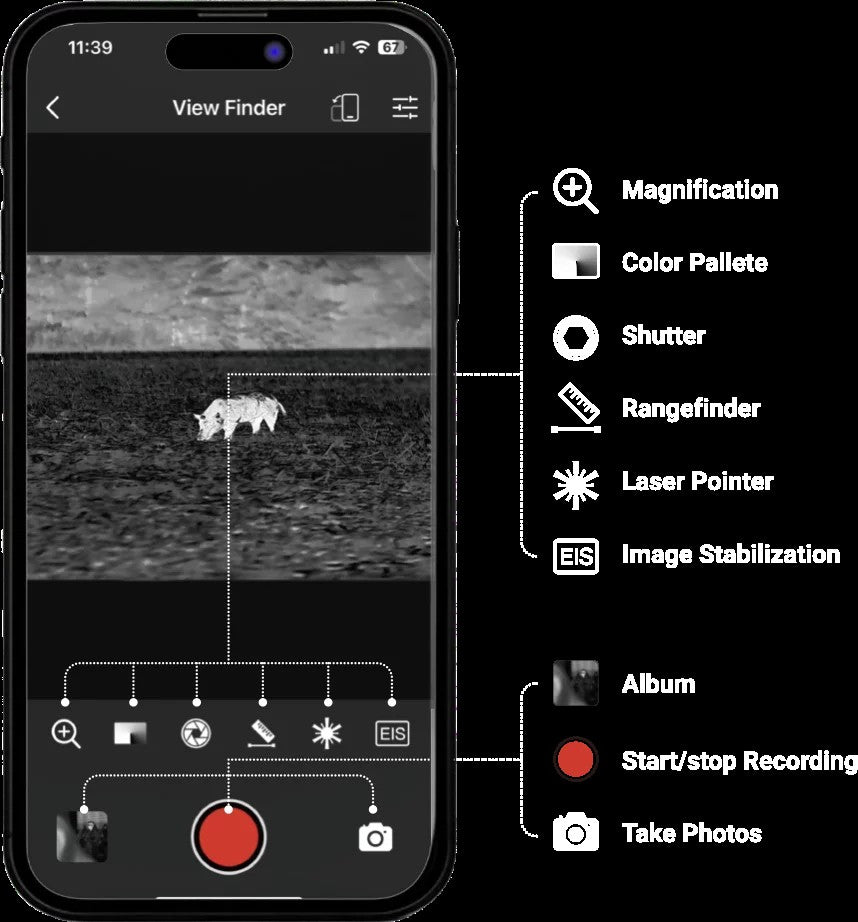

Convenient App-Based Operation

The NOVA supports an intuitive app-based operating system, allowing users to interact with compatible camera functions through the supported application.

Its simplified power arrangement is designed to make integration into compatible vehicle-mounted setups more convenient.

Designed for Hunting and Thermal Observation

The Nocpix NOVA H35R combines high-resolution thermal imaging, integrated ranging, image stabilisation and rugged vehicle-oriented construction in one specialised thermal camera.

Whether observing wildlife, surveying rural properties or configuring a dedicated vehicle-mounted thermal observation system, the NOVA provides a purpose-built solution for demanding Australian conditions.

Available from Outdoor Man Australia

The Nocpix NOVA H35R Vehicle-Mounted Thermal Camera is available through Outdoor Man Australia, supplying thermal imaging equipment and outdoor accessories across Australia.

Shop online with Australia-wide shipping or visit our showroom in Garbutt, Townsville, North Queensland.

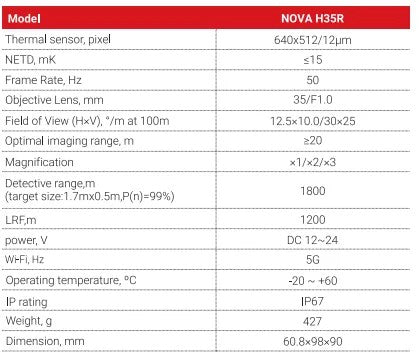

Key Features

• 640 × 512 Thermal Sensor: High-resolution thermal imaging for detailed heat-signature observation.

• 12μm Pixel Pitch: Fine thermal sensor resolution for detailed image capture.

• NETD ≤15mK: High thermal sensitivity for detecting subtle temperature differences.

• 35mm Fixed-Focus Lens: Convenient viewing without continuous manual focus adjustments.

• 1200m Laser Rangefinder: Integrated Class 1 LRF for distance measurement.

• Class 2 Laser Pointer: Assists with indicating points of interest.

• Shutter-Free Imaging: Continuous thermal viewing without periodic shutter interruptions.

• Electronic Image Stabilisation: Helps reduce the visual effects of vehicle vibration and movement.

• 5GHz Wi-Fi Connectivity: Responsive wireless communication with compatible viewing systems.

• Vehicle-Grade Construction: Designed to withstand demanding vehicle-mounted conditions.

• Aluminium Alloy Housing: Durable construction for outdoor use.

• Robust Connectors: Designed for reliability in vehicle-mounted applications.

• App-Based Operation: Convenient control through a compatible application.

• Australian-Focused Design: Developed for harsh Australian hunting environments.

What is the Nocpix NOVA H35R used for?

The Nocpix NOVA H35R is a vehicle-mounted thermal imaging camera designed for hunting, wildlife observation, property monitoring and outdoor thermal detection. It features a 640 × 512 thermal sensor, electronic image stabilisation and an integrated 1200m laser rangefinder.

Can the Nocpix NOVA H35R connect to a phone or tablet?

Yes. The Nocpix NOVA H35R uses 5GHz Wi-Fi to connect with compatible smartphones or tablets through the Nocpix App, allowing users to view thermal imagery and access supported camera functions without a built-in display.

What is the detection range of the Nocpix NOVA H35R?

The Nocpix NOVA H35R has a manufacturer-rated thermal detection range of up to 1800m and a built-in laser rangefinder capable of measuring distances up to 1200m. Actual detection performance depends on environmental conditions, target size and temperature contrast.

Explore More Nocpix Thermal Imaging Equipment

Looking for thermal imaging equipment and compatible accessories?

Explore the range of Nocpix Thermal Imaging Products at Outdoor Man Australia.

Browse related equipment including:

• Nocpix Thermal Imaging Monoculars

• Nocpix Thermal Imaging Binoculars

• Nocpix Vehicle-Mounted Thermal Cameras

• Thermal Camera Mounting Accessories

• Spotlight Remote Mounting Equipment

• Vehicle Lighting & Spotlights

• Thermal Imaging Accessories

Find thermal imaging solutions for hunting, wildlife observation and outdoor applications at Outdoor Man Australia.

Nocpix Vehicle-Mounted Thermal Cameras Australia

Looking for a Nocpix vehicle-mounted thermal camera in Australia?

Outdoor Man Australia stocks Nocpix thermal imaging equipment, vehicle-mounted thermal cameras, thermal monoculars, binoculars and compatible mounting accessories for hunting, wildlife observation and outdoor applications.

Shop online with Australia-wide shipping, or visit our retail showroom in Townsville, North Queensland.
